Main Features

1. High efficiency and energy saving: no additional friction loss, much higher efficiency and significant energy saving. The blower automatically adjusts the motor power consumption according to the required air volume (adjustable range of air volume 50-100%).

2. Low noise, no vibration: the fan does not need to set up sound insulation devices, the noise level at 1 m from the machine during operation is <80dB, and the vibration intensity of the fan operation is <1mm/s.

3. No lubricant required: the fan uses air suspension bearing technology, the system requires no lubricant, providing clean air and avoiding secondary pollution.

4. Easy to install: The fan units are light in weight and small in size, making them easy to install. As the fan is supplied as a complete unit (with control system included) and as the fan is vibration-free, no fixing is required for installation.

5. Simple operation and convenient control: the man-machine interface controls remote operation and monitoring in the central control room. The fan is equipped with sensors for online detection of speed, pressure, temperature, flow, power, etc., and the fan's operating status is controlled through the controller. There are anti-surge functions, etc., which can be operated unmanned. The fan air volume is freely adjustable according to external control signals.

Product Model

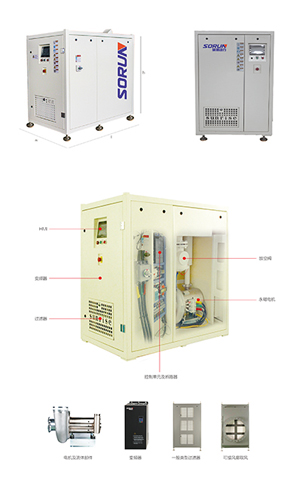

Air Suspension Centrifugal blower

Serial Number


Flow

Pressure

Shaft power

Outlet diameter

Dimension (mm)

Cooling mode

Scope of application




m3/min

(bar)

(KW)

(A KS 10K)

 W

l

h

SRK08

3~8

0.3~0.8

7.5

150

700

1200

1120

Air cooling

Sewage treatment, biological fermentation, biological pharmacy, iron and steel metallurgy, coking coal chemical industry, cement and building materials, nonferrous metals, desulfurization and oxidation, petrochemical, power, machinery, light industry, textile and other industries

SRK11

5~13

0.3-0.8

11

SRK15

6~15

0.3~0.8

15

SRK22

7~25

0.3~0.8

22

SRK37

10~42

0.3~0.8

37

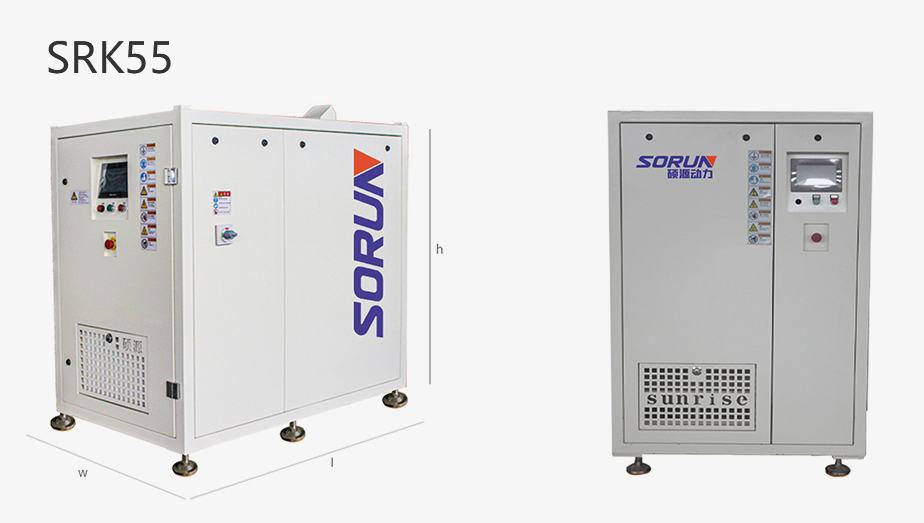

SRK55

18~62

0.3~1.0

55

200

1033

1690

1425

SRK75

23~105

0.3~1.0

75

SRK92

25~115

0.3~0.8

92

SRK110

28~130

0.3~1.0

110

300

1033

2050

1697

SRK150

36~210

0.3~1.0

150

SRK185

40~235

0.3~1.0

185

SRK220

80~260

0.3~1.0

220

400

1263

2260

2187

SRK295

80~275

0.3~1.0

295

400

1760

2260

2187

SRK365

90~330

0.6~1.0

365

500

1760

2260

2187

SRK440

100~420

0.6~1.0

440

500

2150

3600

2187

SRK590

100~520

0.6~1.0

590

600

2150

3500

2187

SRT75

10~30

1.2~2.0

75

150

1033

1690

1425

SRT110

12~51

1.2~2.0

110

200

1033

2050

1697

SRT150

12~76

1.2~2.0

150

250

1033

2050

1697

SRT220

20~85

1.2~2.0

220

250

1263

2260

2187

※ Margin of error: +/-5%

※ Operating conditions: ambient pressure of 100Kpa, ambient temperature of 25℃, ambient humidity of 60RH%

※ Performance guarantee: flow ±4%, power ±5%

※ To improve product performance, product performance can be changed in advance without notice

※ Can be customized if there is special demand
